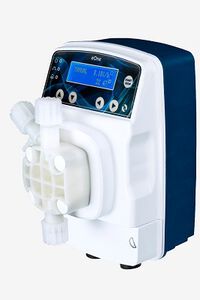

Etatron eOne PLUS 0216 PVDF metering pump PEU 46 391 4I 0216
flow rate at max. pressure [l/h]: 2 | max. pressure [bar]: 16 | mL per stroke: 0.21 | power [W]: 21 | current [A]: 1.4 | CP: N/A | std. power supply: 100-250V / 50-60 HZ
=> Note: The product image is for illustration purposes only. Please use the description for identification.
Buy Profluid Shop online at low prices – for larger orders or volume discounts, please contact us for a customized quote. This offer is exclusively for commercial customers.
Etatron metering pump eOne PLUS 0216
partnumber: PEU 46 391 4I 0216
|
Etatron eOne PLUS 0216 PVDF metering pump PEU 46 391 4I 0216
|
The new range of Etatron metering pumps, the eOne series, is the next generation in chemical metering. With high stroke rates, low energy consumption, accuracy, repeatabilityand control of flow change in response to pressure changes.
Variants
| Type | Flow rate at max. | max. pressure (bar) | Pulse setting imp./1' | Strom | Leistung | Current (A) | Gewicht (kg) | ||
| Druck | -supply | in | |||||||
| l/h | mL/min | mL/ Hub | (W) | ||||||
| 0110 | 1 | 16,66 | 0,09 | 10 | 180 | 100-250V / 50-60 HZ. | 19 | 1.4 | 3 |
| eOne PLUS 0216 | 2 | 0.21 | 16.66 | 300 | 21 | 1.4 | 3,5 | ||
| 0420 | 4 | 83,33 | 0,27 | 20 | 300 | 21 | 1.4 | 3 | |
| 0607 | 6 | 83,33 | 0,34 | 7 | 300 | 28 | 2 | 4,5 | |
| 0710 | 7 | 133,33 | 0,45 | 10 | 300 | 26 | 1,8 | 3,5 | |
| 1012 | 10 | 166,66 | 0,55 | 12 | 300 | 36 | 1,8 | 4,5 | |
| 1505 | 15 | 250 | 0,83 | 5 | 300 | 26 | 1,8 | 3,5 | |
| 2007 | 20 | 333,33 | 1,38 | 7 | 300 | 32 | 1,9 | 4.5 | |
| 3005 | 30 | 500 | 2,08 | 5 | 300 | 32 | 1,9 | 4.5 | |
Features
control mode functions(pH, ORP, Cl) | |
Ranges: 0.00 to 14.00 "pH";-1000 - +1400 mV "ORP",0 - 2, 0 - 20, 0 - 200 ppm "Cl" | |
PT 100 temperature input | |
0/4 -20 mA Ausgang | |
Näherungsschalter | |
High stroke rate up to 300 pulses/min. | |
control of flow change in response to pressure changes | |
Energieeffizient (typischerweise 26W bei maximaler Last) | |
0 | |
0 | |
Other features
eOne Dosierpumpen Stromversorgungsbereich von 100V....250Vac (50-60Hz) Spannung | |
