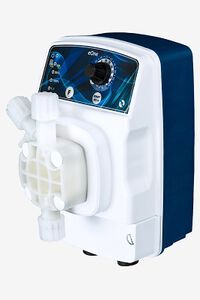

Etatron eOne MF 0110 PVDF metering pump PEU 48 389 4I 0110
flow rate at max. pressure [l/h]: 1 | max. pressure [bar]: 10 | mL per stroke: 0.09 | power [W]: 19 | current [A]: 1.4 | CP: N/A | std. power supply: 100-250V / 50-60 HZ
=> Note: The product image is for illustration purposes only. Please use the description for identification.
Buy Profluid Shop online at low prices – for larger orders or volume discounts, please contact us for a customized quote. This offer is exclusively for commercial customers.
Etatron dosing pump eOne MF 0110
partnumber: PEU 48 389 4I 0110
|
Etatron eOne MA 3005 PVDF Dosierpumpe PEU 45 386 4I
|
The new range of Etatron metering pumps, the eOne series, is the next generation in chemical metering. With high stroke rates, low energy consumption, accuracy, repeatabilityand control of flow change in response to pressure changes.
Variants
| Type | Flow rate at max. | max. pressure (bar) | Pulse setting imp./1' | Strom | Leistung | Current (A) | Gewicht (kg) | ||
| Druck | -supply | in | |||||||
| l/h | mL/min | mL/ Hub | (W) | ||||||
| eOne MF 0110. | 1 | 16,66 | 0.09 | 10 | 1.8 | 100-250V / 50-60 HZ. | 19 | 1.4 | 3 |
| 0216 | 2 | 50 | 0,21 | 16 | 4.5 | 21 | 1.4 | 3,5 | |
| 0420 | 4 | 83,33 | 0,27 | 20 | 4.5 | 21 | 1.4 | 3 | |
| 0607 | 6 | 83,33 | 0,34 | 7 | 4.5 | 28 | 2 | 4,5 | |
| 0710 | 7 | 133,33 | 0,45 | 10 | 4.5 | 26 | 1,8 | 3,5 | |
| 1012 | 10 | 166,66 | 0,55 | 12 | 4.5 | 36 | 1,8 | 4,5 | |
| 1505 | 15 | Pressure. | 0,83 | 5 | 4.5 | 26 | 1,8 | 3,5 | |
| 2007 | 20 | 333,33 | 1,38 | 7 | 4.5 | 32 | 1,9 | 4,7 | |
| 3005 | 30 | 500 | 2,08 | 5 | 4.5 | 32 | 1,9 | 4,7 | |
Features
Higher dosing capacity than eOne Basic | |
Pump head made of PVDF, universal | |
High stroke rate up to 300 pulses/min. | |
Steuerung der Durchflussänderung in Abhängigkeit von Druckänderungen | |
Energieeffizient (typischerweise 26W bei maximaler Last) | |
